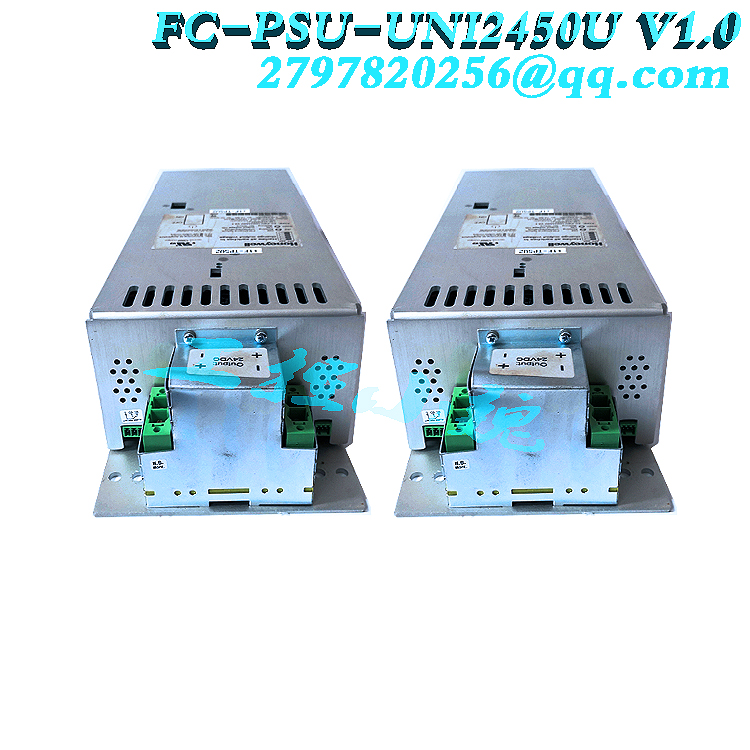

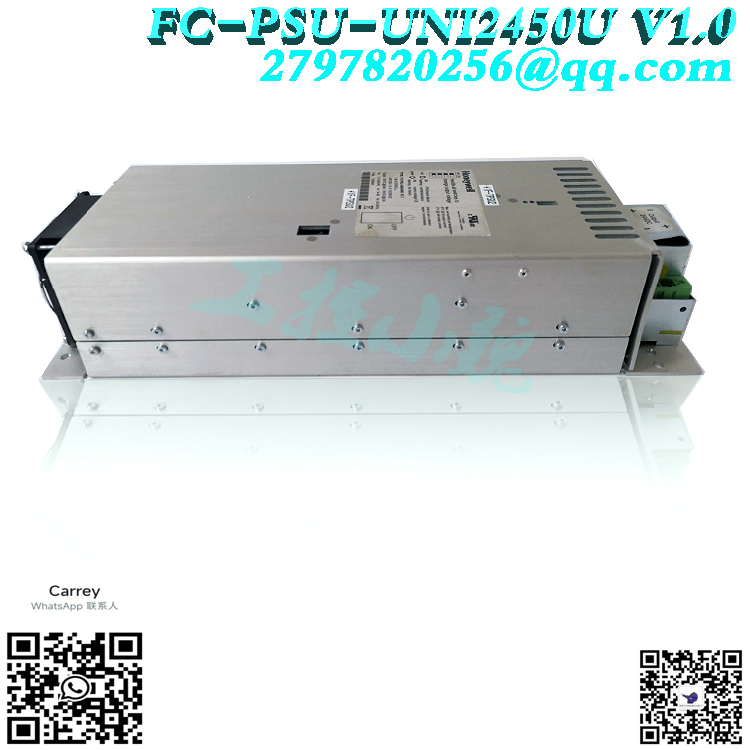

　　 FC-PSU-UNI2450U V1.0 Other names:

Control power supply FC-PSU-UNI2450U V1.0

FC-PSU-UNI2450U V1.0 Voltage regulator

Power supply unit FC-PSU-UNI2450U V1.0

The  FC-PSU-UNI2450U V1.0 system power supply unit plays a crucial role in industrial automation and control systems, responsible for providing stable and reliable power supply to the entire system. It is responsible for providing stable and reliable working power for distributed processing units (DPUs), IO modules, etc.

The main characteristics and functions of the FC-PSU-UNI2450U V1.0 system power supply unit

---

　　Power input and output:

The power supply unit usually accepts 220V AC as input.

In terms of output, the power unit provides 24V DC and 48V DC power to meet the power requirements of different devices and modules.

　　Power supply technology and design:

The FC-PSU-UNI2450U V1.0 power unit adopts AC/DC switching power supply technology to convert input AC power into DC power.

The system power module can be used independently or in redundant configuration to ensure the continuity and reliability of power supply.

　　Fault self-test and automatic switching

Fault self-test circuit: The system power unit has a redundant switching circuit and a fault self-test circuit composed of hardware, which can monitor the working status of the power module in real time.

Automatic or manual redundant device switching: When a fault is detected, the system can automatically or manually switch to the backup power module to ensure continuous power supply to the system.

　　Buffer capacitors and charging circuits:

The FC-PSU-UNI2450U V1.0 power unit may contain a buffer capacitor that can continue to supply power to the DC voltage branch for a predetermined minimum period of time in the event of a system power failure or interruption.

The buffer capacitor is charged by a dedicated charging circuit, ensuring that it can provide stable power output when needed.

　　 FC-PSU-UNI2450U V1.0 Power Management and Protection:

The FC-PSU-UNI2450U V1.0 system power unit has power management and protection functions, such as overvoltage, undervoltage, and short circuit protection for input power, to ensure the safe operation of the system.

Through these protective measures, the system power unit can prevent system failures and damage caused by power supply issues.

　　Power stability and reliability:

The FC-PSU-UNI2450U V1.0 power unit needs to provide a stable output voltage to meet the power requirements of various devices and modules.

By using circuit components such as voltage regulators and filters, the power supply unit can reduce output voltage fluctuations and noise, ensuring stable system operation.

　　Redundant design and automatic switching:

Process control cabinets typically adopt a dual redundant design, including dual redundant distributed processing units (DPUs) and dual redundant power supplies.

Internally, there are redundant switching circuits and fault self checking circuits composed of hardware, which can achieve automatic or manual switching of redundant equipment, further improving the reliability and availability of the system.

In summary, the system power unit is an important component of industrial automation and control systems, responsible for providing stable and reliable power supply for the entire system. By adopting advanced power technology, buffer capacitors and charging circuits, power management and protection measures, as well as redundant design and automatic switching functions, the system power unit ensures stable operation and optimized management of the system.

---
