IS200VAICH1D SPECIFICATIONS　Part No.: IS200VAICH1D　　Manufacturer: General Electric　　Country of Manufacture: United States　　Product Type: Contact Input Group Isolation terminal board　　Series: Mark VI

　　Product Description

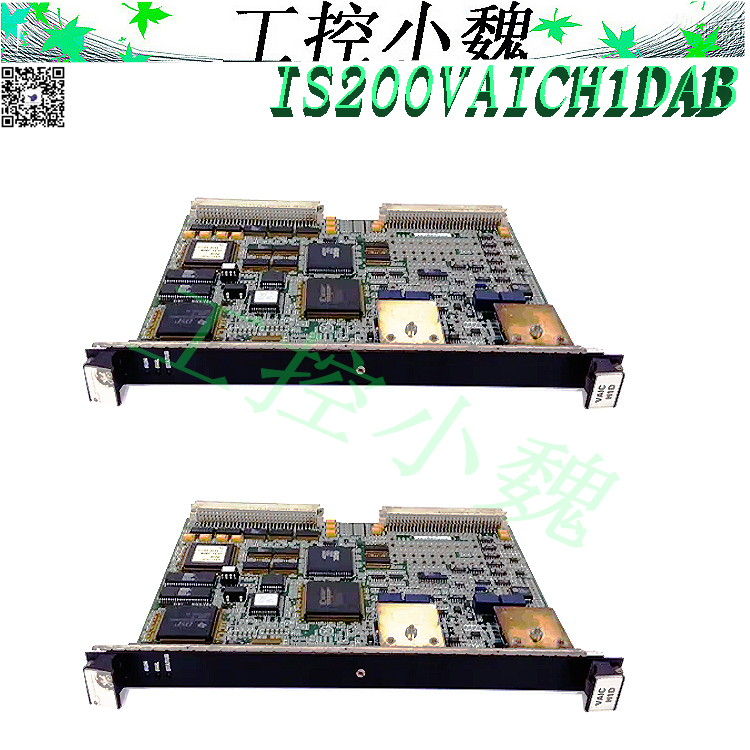

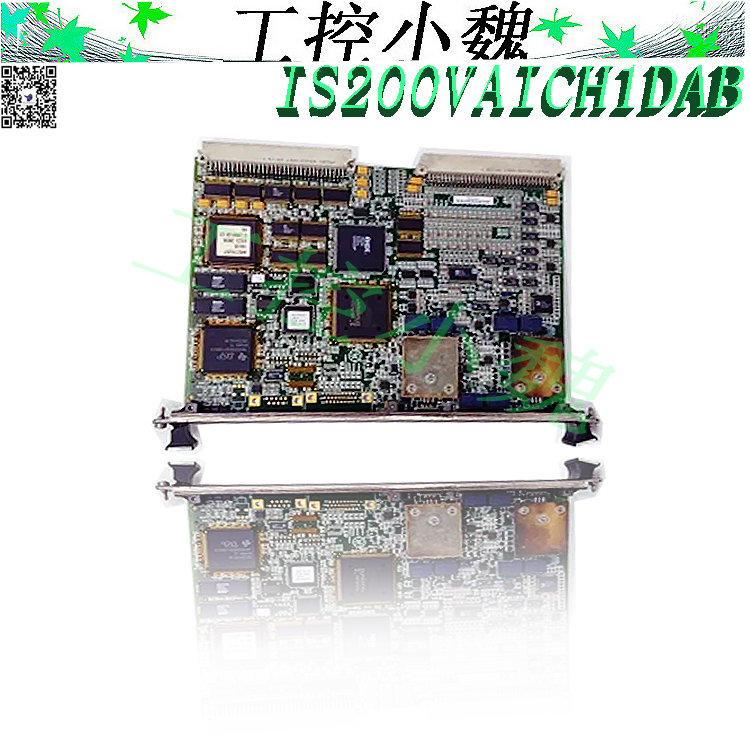

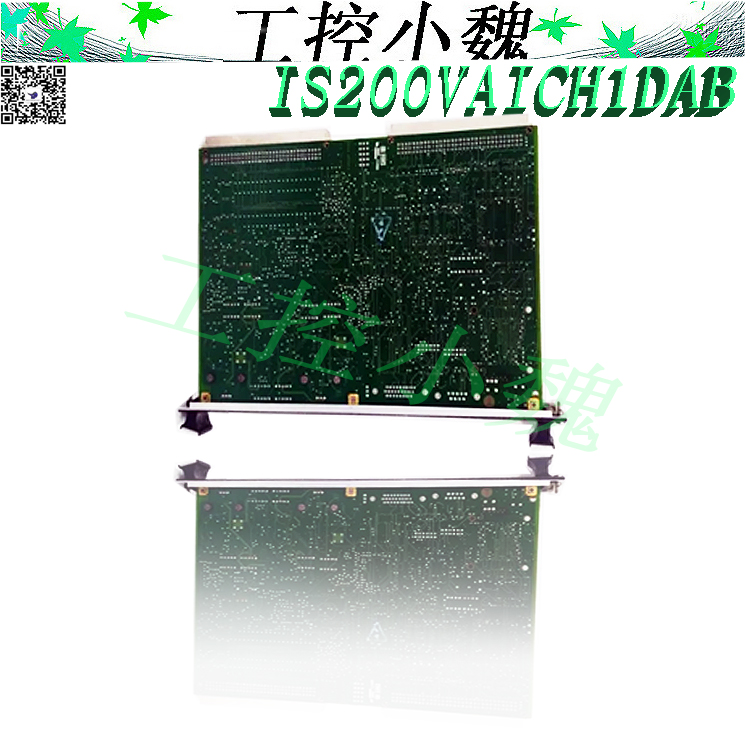

The IS200VAICH1D is one of several Analog VME boards available for the General Electric Mark VI turbine control system. Boards like this one can be used in either TMR or simplex systems depending on how they are made, so please be sure to order the correct board for your particular system and architecture. AX Control has several VAIC boards in stock.　　The IS200VAICH1D is an I/O processor board. It works in conjunction with two TBAI terminal boards. This is a single-width VME board with a high-speed CPU that offers digital filtering. It uses a 32-bit floating-point format. The board contains the sensor characteristic library needed for RTD and thermocouple linearizations and other quantity and control capabilities. Configurations can be updated through software while the unit is running.　　As a single-width board, the unit has a narrow front faceplate with a retaining clip located at each end. The front faceplate has three LED indicators built into its front. These will indicate updates to status, as well as information on run and fail issues.　　The board itself is designed with two backplane connectors spaced equally on the rear edge of the board. These connectors allow the board to communicate with the rack and other boards within it. Typically, such connectors are designed as 37-pin connectors.　　Other board components include processor chips and other integrated circuits, relays, resistors, transistors, and diodes. The components may be marked with their original manufacturer identification part number, which will allow you to use datasheets for additional information. All are marked with some sort of reference designation on the surface of the board.　　IS200VAICH1D is a Contact Input Group Isolation terminal board developed by GE. The VAIC (Analog Input/Output Control) board accepts 20 analog inputs and controls four analog outputs. Ten inputs and two outputs are available on each terminal board. The terminal board is connected to the VME rack, which houses the VAIC processing board, through cables. VAIC converts the inputs to digital values and sends them to the VCMI board, which then sends them to the controller through the VME backplane. The VAIC translates digital values to analog currents and drives them into the customer circuit via the terminal board. Both simplex and triple modular redundant (TMR) applications are supported by VAIC.　　The terminal board’s input signals are fanned out to three VME board racks R, S, and T, each containing a VAIC, when used in a TMR setup. IS200VAICH1D is a Contact Input Group Isolation terminal board developed by GE.　　The VAIC (Analog Input/Output Control) board accepts 20 analog inputs and controls four analog outputs. Ten inputs and two outputs are available on each terminal board. The terminal board is connected to the VME rack, which houses the VAIC processing board, through cables.　　VAIC converts the inputs to digital values and sends them to the VCMI board, which then sends them to the controller through the VME backplane. The VAIC translates digital values to analog currents and drives them into the customer circuit via the terminal board.　　Both simplex and triple modular redundant (TMR) applications are supported by VAIC. The terminal board’s input signals are fanned out to three VME board racks R, S, and T, each containing a VAIC, when used in a TMR setup.　　IS200VAICH1D Compatibility　　The VAIC board comes in two generations, each with its own terminal board. All versions before to and including VAICH1C are included in the original VAIC. This generation also includes VAICH1B. These boards can sustain up to 500 load resistance at the end of 1000 feet of #18 wire while driving 20 mA outputs. For optimal operation, this generation of board requires terminal board TBAIH1B or earlier. They are also compatible with all DTAI terminal board revisions.　　Installation　　To install the V-type board, follow these instructions.　　Turn the VME processor rack off.　　To seat the board’s edge connectors, slide it in and push the top and bottom levers in with your hands.　　Tighten the captive screws on the front panel’s top and bottom.　　Operation　　Signal conditioning, an analog MUX, an A/D converter, and a D/A converter are all included on the VAIC board, which receives 20 analog inputs and controls four analog outputs. Jumpers on the terminal board specify the kind of analog input, which can be voltage, 4-20 mA, or 1 mA.　Two of the four analog output circuits are 4-20 mA, while the other two are 4-20 mA or 0-200 mA.　　IS200VAICH1D Diagnostics　The state of the VAIC front panel is shown by three LEDs at the top. The RUN state is flashing green, whereas the FAIL condition is a solid red. The third LED shows STATUS and is ordinarily off, but flashes a constant orange if the board has a diagnostic alert condition. The following diagnostic tests are included:　　Hardware limit testing is performed on each analog input using non-customizable high and low levels that are predetermined to be near the limits of the operational range. A logic signal is set and the input is no longer examined if this limit is exceeded. The entire board generates a composite diagnostic warning called L3DIAG VAIC if any hardware limit on the input is reached. Information about each diagnosis is available from the toolbox. Individual diagnostic signals may be latched, and the RESET DIA signal may be used to reset them.　　System limit checking for each input is based on programmable high and low values. These restrictions, which can be adjusted for enable/disablement and latching/non-latching, can be utilized to trigger alarms. The out of bounds are reset via RESET SYS.　　In TMR systems, one signal is recognized and a defect is issued if it deviates from the median value—the value that was voted on—by more than a predefined amount. This may give an early warning that a problem is emerging in one channel.　　Take note of your D/A outputs, output currents, total current, suicide relays, and 20/200 mA scaling relays, as these are all susceptible to faults and are monitored for reasonability.　　VAIC examines the TBAI ID card. A read-only chip with the terminal board serial number, board type, revision number, and the location of the JR, JS, and JT connectors is where the board ID is encoded. A hardware incompatibility fault is triggered when the I/O processor reads the chip and encounters a mismatch.

　　Compressor Stall Detection

Gas turbine compressor stall detection is performed at 200 Hz by the firmware. There are two stall algorithms available. The first four analog inputs, scanned at 200 Hz, are used by both. Referring to the picture, Tiny (LM) Gas Turbine Compressor Stall Detection Approach, one algorithm is for small LM gas turbines and employs two pressure transducers. The other technique (see the picture, Heavy Duty Gas Turbine Compressor Stall Detection Algorithm) is for heavy-duty gas turbines and makes use of three pressure transducers. For clarity, real-time inputs and configurable parameters are divided. The parameter CompStalType selects the type of algorithm required, either two transducers or three. PS3 is the compressor discharge pressure. A drop in this pressure (PS3 drop) indicates a possible compressor stall. The algorithm also calculates the rate of change of discharge pressure, dPS3dt, and compares these values with configured stall parameters (KPS3 constants).

　　Frequently Asked Questions

　　What does IS200VAICH1D stand for?

The IS200VAICH1D is a VME Analog Input board from General Electric that is part of the Speedtronic Mark VI turbine series.

　　How can we get information and status on the run and fail issues?

Three LED indicators are located on the front faceplate. These will provide status updates as well as information on difficulties that may cause the system to run or fail.

　　Where can I get the IS200VAICH1D part?

For IS200VAICH1D terminal board or other turbine control needs, contact Xiamen Xiongba Sales Consultant: Carrey.
